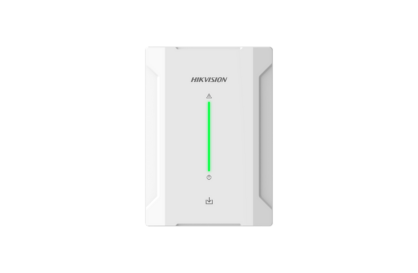

Hikvision DS-PM1-O4H-H AX Hybrid Pro 4-Way Output Module to suit Hardwired Alarm Controller

Wired 4-way power relay

• Supports 4 onboard power relays，each relay can handle current of up to 16A
• Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port

Hardware Features

• Serial Port: 1 TTL serial port
• Tamper-Proof: Support (front and rear)
• Bus: 2×Speed-X bus, 1 uplink for control panel connection and 1 downlink for next expander

Electrical Characteristics

• Power Supply: 9 to 24 VDC
• Typical Voltage: 12 VDC
• Power Consumption:
  • Maximum current: 210 mA @ 12 VDC
  • Quiescent current: 65 mA @ 12 VDC

Display

• LED Indicator:
  • 1 for power
  • 1 for fault

General

• Dimension (WxHxD): 110 mm × 155 mm × 32.5 mm
• Shell Material: Plastic
• Weight: 333.1 g
• Operation Temperature: -10°C to 40°C
• Operation Humidity: 10% to 90%
