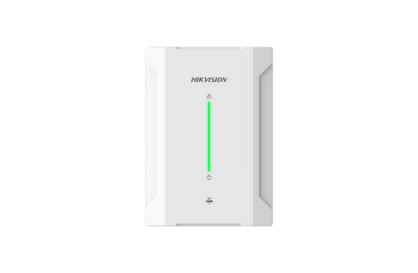

Hikvision DS-PM1-RT-HWB AX Hybrid Tri-X Wireless Receiver

Tri-X Wireless Receiver

• 433MHz wireless receiver
• Wireless transmission distance up to 1300m
• Supports 32 wireless detectors，8 wireless indoor sounders and 4 wireless outdoor sounders

Software Features

Compatibility List:

• DS-PS1-I-WB
• DS-PS1-E-WB
• DS-PM1-O1L-WB
• DS-PM1-O1H-WB
• DS-PDP15P-EG2-WB
• DS-PDC15-EG2-WB
• DS-PDD12P-EG2-WB
• DS-PDMC-EG2-WB
• DS-PDMCS-EG2-WB
• DS-PDEB1-EG2-WB
• DS-PDEBP1-EG2-WB
• DS-PDWL-E-WB
• DS-PDPG12P-EG2-WB
• DS-PDMCK-EG2-WB
• DS-PDTPH-E-WB
• DS-PDCL12-EG2-WB
• DS-PDC10AM-EG2-WB
• DS-PDC10DM-EGW-WB

Hardware Features

Bus:

• 1 Speed-X bus

Electrical Characteristics

Power Supply:

• 9 to 24 VDC
• Typical Voltage: 12 VDC
• Power Consumption:
  • Maximum current: 100 mA @ 12 VDC
  • Quiescent current: 40 mA @ 12 VDC

Wireless Transmission

RF Frequency:

• 433 MHz
• Wireless Security: Frequency hopping 128 AES encryption

Display

LED Indicator:

1. Green: power/find me
2. Orange: alarm/fault

General

Dimension (WxHxD):

• 110 mm × 155 mm × 32 mm

Shell Material:

• Plastic

Weight:

• 233 g

Operation Temperature:

• -10°C to 40°C

Operation Humidity:

• 10% to 90%

Device Management

Alarm Input:

• Up to 32 wireless detectors (portable emergency button is not included)

Wireless Sounder:

• Up to 8 wireless indoor sounders, 4 wireless outdoor sounders
