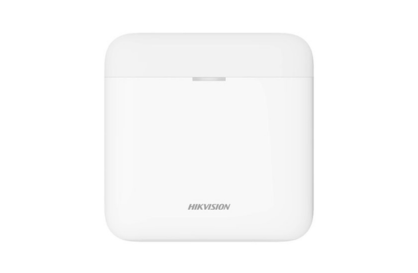

Wireless Repeater
-
433MHz two-way wireless communication
-
Two-way communication, stable and secure
-
LED display, show the differernt feedbacks with easy understanding
-
Up to 35 hrs battery backup after mains lost, no worry about communication
-
Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
-
Easy installation with new designed structure
Software Features
Hardware Features
- Serial Port: 2 (for debug)
- Tamper-Proof: 1 (front and back)
- Power Switch: 1
Electrical Characteristics
- Battery Type: Built-in Battery Li
- Power Supply: 100 VAC to 240 VAC
- Operation Humidity: 10% to 90%
- Operation Temperature: -10°C to +55°C (The battery cannot be charged at temperatures lower than 10°C, please ensure the adapter is connected)
- Battery Life Span: Up to 35 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wireless Transmission
- RF Frequency: 433 MHz
- RF Method: Two-way communication
- RF Modulation: 2GFSK
- RF Distance: 800 m (open area)
- Wireless Security: AES-128
Display
- LEDs Status: 3 indicators (Register/Signal - Green/Red, Power - Green, Fault - Amber)
General
- Installation Method: Wall mounting
- Dimension (WxHxD): 150 mm × 150 mm × 25 mm
- Shell Material: Plastic
- Color: White
- Weight: 372 g
Device Management
- PIRCAM Pairing: Supported
- Keypad: LCD keypad not supported
