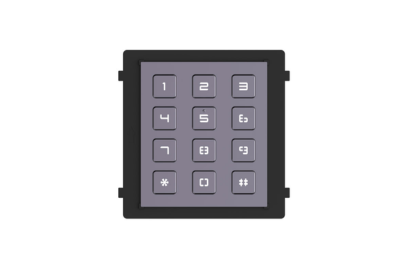

Hikvision Gen2 DS-KD-KP Video Intercom Keypad Module

KD8 Series Pro Modular Door Station

• Keypad module of modular door station
• Supporting input pin code to open door, call indoor station
• IP65 and IK07 higher protection level
• Backlight compensation behind the keypad buttons
• Easy to use and extend
• Data Sheet

System Parameters

• Operating System: Embedded Linux operating system
• ROM: /
• RAM: /
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: /
• Type: Not supported
• Resolution: /

Video Parameters

• Lens: /
• Resolution: /
• FOV: /
• WDR: Not supported
• Supplement Light: Not supported
• Video Compression Standard: /

Audio Parameters

• Audio Compression Standard: /
• Audio Input: /
• Audio Output: Not supported
• Audio Compression Bitrate: /
• Audio Quality: /
• Volume Adjustment: /

Capacity

• User Capacity: /
• Face Capacity: Not supported
• Card Capacity: /
• Linked Network Camera Capacity: /

Network Parameters

• Communication Protocol: /
• Wired Network: /
• Wi-Fi Standard: Not supported
• Bluetooth Version: /
• 3G/4G Standard: /

Device Interfaces

• Alarm Input: /
• Network Interface: /
• TAMPER: Not supported
• Exit Button: /
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: /
• Alarm Output: /
• Lock Control: /
• Door Contact Input: /
• Power Interface: 1

Performances

• Multi-Factor Authentication: /

General

• Button: 12
• Installation: Flush mounting, surface mounting
• Indicator: /
• Weight:
  • With package: 529 g
  • Without package: 265 g
• Protective Level: IP65, IK7
• Working Temperature: -40° C to +55° C (-40° F to 131° F)
• Working Humidity: 10% to 95%
• Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
• Battery: /
• Application Environment: Outdoor
• Power Consumption: 1 W
