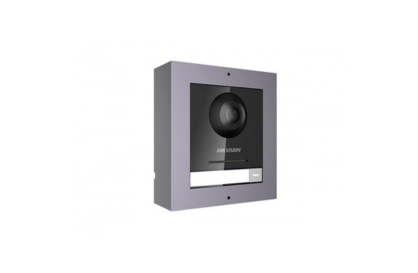

Hikvision Gen2 DS-KD8003-IME1 Video Intercom Module Door Station (Surface Mount)

KD8 Series Pro Modular Door Station

• Modular door station for villa
• DS-KD8003 with its surface mounting accessories
• IP65 (DS-KD8003+DS-KD-ACW1)
• 2 MP HD video intercom function
• Supports sub-modules access
• Easy to and extend

System Parameters

• Operating System: Embedded Linux operating system
• ROM: 16 MB
• RAM: 256 MB
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: Not supported
• Type: /
• Resolution: /

Video Parameters

• Lens: 1
• Resolution:
  • Main stream: 1920 × 1080
  • Sub stream: 720 × 480
• FOV: Horizontal: 180°, Vertical: 96°
• WDR: Support
• Supplement Light: IR supplement
• Video Compression Standard: H.264

Audio Parameters

• Audio Compression Standard: G.711 U
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: /
• Face Capacity: /
• Card Capacity: /
• Linked Network Camera Capacity: 500
• Holiday Group: 16

Network Parameters

• Communication Protocol: TCP/IP, RTSP
• Wired Network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard: /
• Bluetooth Version: /
• 3G/4G Standard: /

Device Interfaces

• Alarm Input: 4
• Network Interface: 1
• TAMPER: 1
• Exit Button: 2
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: /
• Alarm Output: /
• Lock Control: 2
• Door Contact Input: 2
• Power Interface: 1

Performances

• Multi-Factor Authentication: 2000

General

• Button: 1
• Installation: Surface mounting
• Indicator: /
• Weight:
  • With package: 554 g
  • Without package: 375 g
• Protective Level: IP65
• Working Temperature: -40° C to +55° C (-40° F to 131° F)
• Working Humidity: 10% to 95%
• Dimensions: 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
• Battery: /
• Application Environment: Outdoor
• Power Consumption: 4 W
• Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
