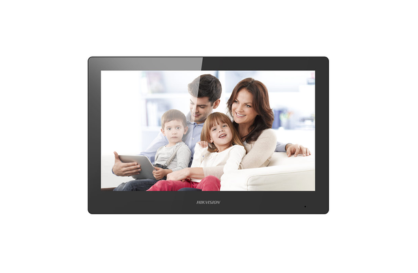

Hikvision Gen2 DS-KH8520-WTE1 Video Intercom 10-Inch Touch Screen Indoor Room Station

KH8 Series Indoor Station

• 10.1-inch TFT touch screen with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Easy to use without PC
• Easy wizard for quick set up
• Configure the whole system on one touch screen
• Rich functions and extensions
• Live-view of the door station and cameras in public areas
• Support voice messages when no response from the indoor station
• Receive alarms by linkage with a alarm system and notify the center to handle in time
• Elevator access control

System Parameters

• Operating System: Linux
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded high-performance processor

Display Parameters

• Size: 10.1-inch
• Operation Method: Capacitive touch screen
• Type: Colorful TFT screen

Video Parameters

• Lens: Not supported
• Field of View (FOV): Not applicable
• Pixel: Not specified

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711 U
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Network Parameters

• Communication Protocol: TCP/IP, SIP, RTSP
• Wired Network: 10/100 Mbps self-adaptive
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Not supported
• Zigbee: Not supported

Device Interfaces

• Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
• Power Interface: 1

General Specifications

• Button: None
• Installation: Surface mounting
• Indicator: None
• Weight:
  • With Packaging: 1118 g
  • Without Packaging: 660 g
• Protective Level: Not specified
• Power Supply Method: IEEE802.3af, standard PoE / 12 VDC/1 A
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions: 254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89")
• Battery: Not specified
• Application Environment: Indoor
• Power Consumption: ≤ 6 W
• Language Support: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
