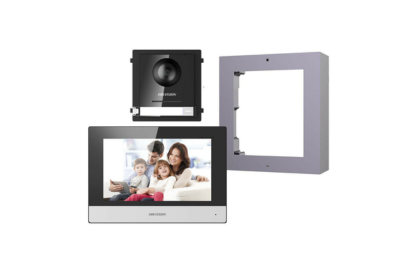

Hikvision Gen2 IP Modular Intercom Kit for Homes (Surface Mount)

This kit consists of the most commonly ordered items (to make it easier for you)

1 x Hikvision 2nd Gen DS-KD8003-IME1 IP Intercom, Door Station with Camera, 1x Button, IP65, 12VDC/POE
1 x Hikvision 2nd Gen. DS-KD-ACW1 Intercom, Door Station Housing, Surface Mount, Supports 1 Module
1 x Hikvision 2nd Gen Hikvision DS-KH6320-TE1 IP Intercom, 7″ Touch Screen Room Station, 1024 x 600, 12VDC/POE

WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the indoor Monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)

If you need to open/ control 1-2 door / gate strikes, run 4 core cabling from the Intercom Door Station to the respective strikes. These strikes need to be powered separately, ie. the door station will not be able to power these strikes.





DOOR STATION
The Hikvision 2nd Generation offers a flexible modular range of IP intercoms. The HIK-KD8003-IME1 is a door station with a 2MP HD camera which supports up to 8 extension modules. Being a modular and customisable design, this allows the SI to create an entry door panel consisting of one or all the following options; electronic tenant directory, digital keypad, nametag, RFID reader and display modules.

• IP65 rating
• H.264 video compression
• -40 to +60 degrees Celsius operating temperature
• Dimensions: 98 x 99.8 x 43.9mm

• 2MP HD video intercom function
• Access control function
• Noise suppression and echo cancellation
• Low illumination
• Tampering alarm supported
• Fisheye camera with IR supplement light
• Supports up to 8 sub-modules’
• Nametag customisation
• Easy to expand

SURFACE MOUNT MODULE
The Hikvision HIK-KD-ACW1 is a surface mount door station housing that is designed to support 1 module.

• Material: aviation aluminium
• Operating temperature: -40 to 60 degrees celsius
• Frame dimensions: 117 x 107 x 32.7mm
• Cover dimensions: 117 x 107 x 4mm

MONITOR
The Hikvision HIK-KH6320-TE1 is a 7 inch colour room station which is designed to work with the flexible 2nd Generation range of IP intercoms.
