Description

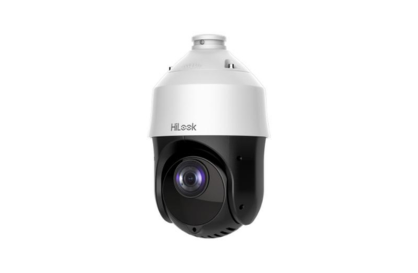

4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome
- Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Excellent night-time performance with up to 100 m enhanced IR
- Water and dust resistant (IP66)
Camera
Image Sensor
- Type: 1/2.8" progressive scan CMOS
Max. Resolution
- Resolution: 1920 × 1080
Min. Illumination
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON)
- IR: 0 Lux with IR
Shutter Speed
- Speed: 1/1 s to 1/30,000 s
Day & Night
- Filter: IR Cut Filter
Zoom
Optical Zoom
- Zoom: 25x optical
Digital Zoom
- Zoom: 16x digital
Lens
Focal Length
- Range: 4.8 mm to 120 mm, 25× optical
Field of View (FOV)
- Horizontal: 57.6° to 2.5° (Wide-Tele)
- Vertical: 34.4° to 1.4° (Wide-Tele)
- Diagonal: 64.5° to 2.9° (Wide-Tele)
Focus
- Modes: Auto, semi-auto, manual
Aperture
- Range: F1.6 to F3.5
Zoom Speed
- Speed: Approx. 3.2 s (optical lens, wide-tele)
Illuminator
Supplement Light Type
- Type: IR
Supplement Light Range
- Range: Up to 100 m
Smart Supplement Light
- Feature: Yes
PTZ (Pan-Tilt-Zoom)
Movement Range (Pan)
- Range: 360° endless
Movement Range (Tilt)
- Range: From -15° to 90° (Auto-flip)
Pan Speed
- Speed: Configurable, from 0.1°/s to 80°/s
- Preset Speed: 80°/s
Tilt Speed
- Speed: Configurable, from 0.1°/s to 80°/s
- Preset Speed: 80°/s
Proportional Pan
- Feature: Yes
Presets
- Capacity: 300
Preset Freezing
- Feature: Yes
Patrol Scan
- Scans: 8 patrols, up to 32 presets for each patrol
Pattern Scan
- Scans: 4 pattern scans, record time over 10 minutes for each scan
Park Action
- Actions: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display
- Feature: Yes
Scheduled Task
- Tasks: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Power-off Memory
- Feature: Yes
Video
Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
- 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
Video Bit Rate
- Range: 32 Kbps to 16384 Kbps
H.264 Type
- Profiles: Baseline Profile/Main Profile/High Profile
H.265 Type
- Profile: Main Profile
Scalable Video Coding (SVC)
- Encoding: H.264 and H.265
Region of Interest (ROI)
- Streams: Main stream, sub-stream, and third stream respectively support four fixed areas
Audio
Audio Compression
- Codecs: G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Audio Bit Rate
- Rates: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
Network
Protocols
- Supported Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live View
- Channels: Up to 20 channels
API
- Interfaces: Open Network Video Interface, ISAPI, SDK, ISUP
User/Host
- Capacity: Up to 32 users
- Levels: 3 levels: Administrator, Operator, and User
Security
-
Features:
- User authentication (ID and PW)
- Host authentication (MAC address)
- HTTPS encryption
- IEEE 802.1x port-based network access control
- IP address filtering
Network Storage
- Storage Options: NAS (NPS, SMB/CIFS), ANR
Client
- Software: iVMS-4200, HiLookVision
Web Browser
- Supported Browsers: IE10-11, Chrome 57+, Firefox 52+, Safari 12+
Image Settings
- Adjustable Parameters: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)
- Range: 120 dB
Defog
- Feature: Digital defog
Image Stabilization
- Feature: No
Image Enhancement
- Features: BLC, HLC, 3D DNR
Privacy Mask
- Masks: 24 programmable privacy masks
Regional Focus
- Feature: Yes
Regional Exposure
- Feature: Yes
Interface
Ethernet Interface
- Port: 1 RJ45 10 M/100 M Ethernet Interface
- PoE: PoE (802.3at, class 4)
On-board Storage
- Slot: Built-in memory card slot
- Capacity: Supports Micro SD/SDHC/SDXC, up to 256 GB
Audio
- Input: 1 input (line in), max. input amplitude: 2-2.4 Vpp, input impedance: 1 KΩ ± 10%
- Output: 1 output (line out), line level, output impedance: 600 Ω
Event
Basic Event
- Detection Types: Motion Detection, Video Tampering Detection, Exception Detection
Smart Event
- Detection Types: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
General
Power
- Power Supply: 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class 4
- Power Consumption: Max.: 18 W (IR Max. 6 W)
Dimension
- Size: Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")
Weight
- Weight: Approx. 2.5 kg (5.51 lb)
Material
- Construction: ADC 12, PC+10% GF
Operating Condition
- Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
- Humidity: 90% or less (non-condensing)
Approval
EMC
-
Certifications:
- FCC (47 CFR Part 15, Subpart B)
- CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
- RCM (AS/NZS CISPR 32: 2015)
- IC (ICES-003: Issue 7)
- KC (KN 32: 2015, KN 35: 2015)
Safety
-
Certifications:
- UL (UL 62368-1)
- CB (IEC 62368-1:2014+A11)
- CE-LVD (EN 62368-1:2014+A11:2017)
- BIS (IS 13252(Part 1):2010/IEC 60950-1:2005)
- LOA (IEC/EN 60950-1)
Environment
-
Compliance:
- CE-RoHS (2011/65/EU)
- WEEE (2012/19/EU)
- REACH (Regulation (EC) No 1907/2006)
Protection
- Rating: IP66 (IEC 60529-2013)
- Protection Features: 4000V Lightning Protection, Surge Protection, and Voltage Transient Protection
