Description

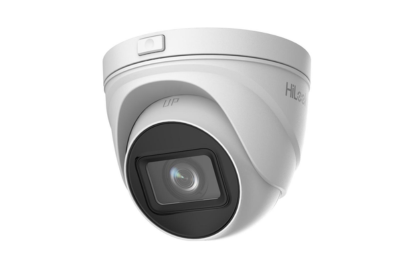

5 MP Motorized Varifocal Turret Network Camera
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Motorized varifocal lens for easy installation and monitoring
Camera
- Image Sensor: 1/2.7" progressive scan CMOS
- Max. Resolution: 2560 × 1920
-
Min. Illumination:
- Color: 0.005 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
-
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
Lens
- Lens Type: Varifocal lens, motorized, 2.8 to 12 mm
-
Focal Length & FOV:
- 2.8 to 12 mm:
- Horizontal FOV: 96° to 29°
- Vertical FOV: 69° to 22°
- Diagonal FOV: 131° to 37°
- 2.8 to 12 mm:
- Lens Mount: Ø14
- Iris Type: Fixed
- Aperture: F1.6
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- IR Wavelength: 850 nm
Video
-
Main Stream:
- 50 Hz:
- 20 fps (2560 × 1920)
- 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (2560 × 1920)
- 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 50 Hz:
-
Sub-Stream:
- 50 Hz:
- 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz:
- 30 fps (1280 × 720, 640 × 480, 640 × 360)
- 50 Hz:
-
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main profile
- Region of Interest (ROI): 1 fixed region for main stream
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
-
User/Host:
- Up to 32 users
- 3 levels: administrator, operator, user
- Client: iVMS-4200, Hik-Connect
-
Web Browser:
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
- Reset Key: Yes
Event
- Basic Event: Motion detection, video tampering alarm, exception
- Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
-
Power:
- 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
- Dimension: Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
- Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
- Weight: Approx. 595 g (1.3 lb.)
- With Package Weight: Approx. 910 g (2.0 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
-
EMC:
- FCC SDoC: 47 CFR Part 15, Subpart B
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014
- RCM: AS/NZS CISPR 32: 2015
- IC VoC: ICES-003: Issue 7
- KC: KN 32: 2015, KN 35: 2015
-
Safety:
- UL: UL 62368-1
- CB: IEC 62368-1:2014+A11
- CE-LVD: EN 62368-1:2014/A11:2017
- BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
-
Environment:
- CE-RoHS: 2011/65/EU
- WEEE: 2012/19/EU
- Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
