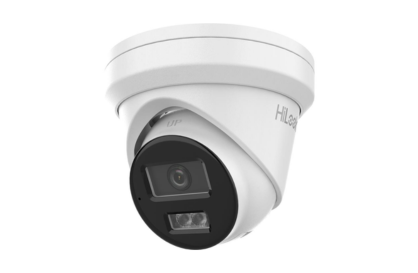

HiLook by Hikvision 8MP IPC-T282H-MU Acusense Turret IP Camera with Built in Mic

8 MP AI Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Support Human and Vehicle Intelligent Detection
• Dual IR lights to enhance night vision
• Built-in microphone for real-time audio security
• Support on-board storage up to 512 GB
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology



Camera Specifications

Image Sensor

• Type: 1/2.7" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Lens

• Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:
  • 2.8 mm:
    • Horizontal FOV: 113°
    • Vertical FOV: 62°
    • Diagonal FOV: 134°
  • 4 mm:
    • Horizontal FOV: 90°
    • Vertical FOV: 49°
    • Diagonal FOV: 108°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI (Detect, Observe, Recognize, Identify)

• 2.8 mm:
  • Detect: 79 m
  • Observe: 31 m
  • Recognize: 15 m
  • Identify: 7 m
• 4 mm:
  • Detect: 102 m
  • Observe: 40 m
  • Recognize: 20 m
  • Identify: 10 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:
  • 50 Hz:
    • 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz
• Audio Compression:
  • G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate:
  • 64 Kbps (G.711ulaw)
  • 64 Kbps (G.711alaw)
  • 16 Kbps (G.722.1)
  • 16 Kbps (G.726)
  • 32 to 160 Kbps (MP2L2)
  • 16 to 64 Kbps (AAC-LC)

Network

• Security:
  • Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host:
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Client: iVMS-4200, Hik-Connect
• Web Browser:
  • Plug-in required live view: IE 10, IE 11
  • Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings:
  • Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone: Yes
• Reset Key: Yes

Event

• Basic Event:
  • Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart Event:
  • Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)
• Linkage:
  • Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

• Power:
  • 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal
• Dimension: Ø127.3 mm × 95.9 mm (Ø5.0" × 3.8")
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight: Approx. 600 g (1.3 lb.)
• With Package Weight: Approx. 909 g (2.0 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC:
  • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7
• Safety:
  • UL: UL 62368-1
  • CB: IEC 62368-1: 2014+A11
  • CE-LVD: EN 62368-1: 2014/A11: 2017
  • BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment:
  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
