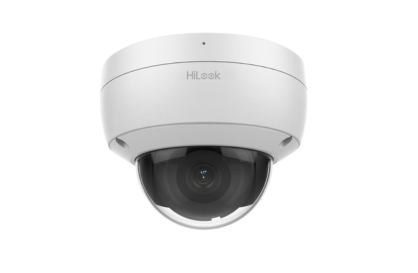

HiLook IPC-D261H-MU 6MP IR Fixed Dome IP Camera 2.8mm IP67, IK10 Built-in Mic with Acusense

6 MP AI Vandal Fixed Dome Network Camera

• High quality imaging with 6 MP resolution
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal-resistant (IK10)



Camera Specifications

• Image Sensor:
  1/2.8" Progressive Scan CMOS

• Maximum Resolution:
  3200 × 1800

• Minimum Illumination:

  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR

• Shutter Time:
  1/3 s to 1/100,000 s

• Day & Night Functionality:
  IR cut filter

• Angle Adjustment:

  • Pan: 0° to 355°
  • Tilt: 0° to 75°
  • Rotate: 0° to 355°

Lens Specifications

• Type:
  Fixed focal length, 2.8 mm

• Focal Length & Field of View (FOV):

  • Focal Length: 2.8 mm
  • Horizontal FOV: 107°
  • Vertical FOV: 57°
  • Diagonal FOV: 128°

• Mount:
  M12

• Iris Type:
  Fixed

• Aperture:
  F1.6

DORI (Detection, Observation, Recognition, Identification) Distance

• 2.8 mm Lens:
  • Detection: 73 m
  • Observation: 29 m
  • Recognition: 15 m
  • Identification: 7 m

Illuminator

• Supplement Light Type:
  IR

• Range:
  Up to 30 m

• Smart Supplement Light:
  Yes

• IR Wavelength:
  850 nm

Video Specifications

• Main Stream:

  • 50 Hz: 20 fps (3200 × 1800)
  • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:
  50 Hz: 25 fps (1280 × 720, 960 × 540, 640 × 480, 640 × 360)

• Third Stream:
  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  Third stream is supported under certain settings.

• Video Compression:

  • Main Stream: H.265/H.264/H.264+/H.265+
  • Sub-Stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264
    Third stream is supported under certain settings.

• Video Bit Rate:
  32 Kbps to 16 Mbps

• H.264 Type:
  Baseline Profile/Main Profile/High Profile

• H.265 Type:
  Main Profile

• Bit Rate Control:
  CBR/VBR

• Scalable Video Coding (SVC):
  H.264 and H.265 encoding

• Region of Interest (ROI):
  1 fixed region for main stream and sub-stream

Audio Specifications

• Audio Compression:
  G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

• Audio Bit Rate:

  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1)
  • 16 Kbps (G.726)
  • 16 Kbps to 64 Kbps (AAC)
  • 32 to 192 Kbps (MP2L2)
  • 8 to 320 Kbps (MP3)

• Audio Sampling Rate:
  8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Environment Noise Filtering:
  Yes

Network Specifications

• Protocols Supported:
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

• Simultaneous Live View:
  Up to 6 channels

• API:
  Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

• User/Host Capacity:
  Up to 32 users. 3 user levels: administrator, operator, and user

• Security Features:
  Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

• Network Storage:
  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

• Client Software:
  iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Compatibility:

  • Plug-in required live view: IE 10, IE 11
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+
  • Local service: Chrome 57.0+, Firefox 52.0+

Image Settings

• Image Parameters Switch:
  Yes

• Image Settings:
  Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Day/Night Switch:
  Day, Night, Auto, Schedule

• Wide Dynamic Range (WDR):
  120 dB

• Signal-to-Noise Ratio (SNR):
  ≥ 52 dB

• Image Enhancement:
  BLC, HLC, 3D DNR

Interface Specifications

• Ethernet Interface:
  1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board Storage:
  Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

• Built-in Microphone:
  Yes

• Reset Key:
  Yes

Event Management

• Basic Events:
  Motion detection (human and vehicle targets classification), video tampering alarm, exception

• Smart Events:

  • Line crossing detection, intrusion detection
  • Supports human and vehicle targets classification
  • Face detection

• Linkage Actions:
  Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General Specifications

• Power Supply:

  • 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W

• Dimensions:
  Ø121.4 mm × 92.2 mm (Ø4.8" × 3.7")

• Package Dimensions:
  150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

• Weight:
  Approx. 550 g (1.2 lb.)

• With Package Weight:
  Approx. 800 g (1.8 lb.)

• Storage Conditions:
  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup and Operating Conditions:
  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language Support:
  33 languages, including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Functions:
  Anti-flicker, heartbeat, password reset via email, pixel counter

Compliance & Approvals

• EMC:
  FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

• Safety:
  UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment:
  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

• Protection:
  IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
