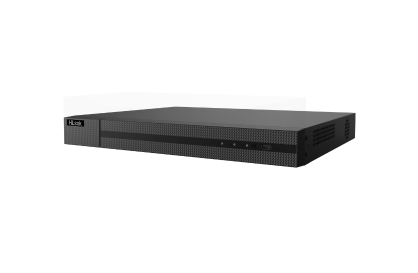

HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Network Video Recorder

16-ch 1U 16 PoE 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
• Data Sheet
• Hilook NVR 7 Steps Setup

Video and Audio

• IP Video Input:
  16 channels

• Incoming Bandwidth:
  160 Mbps

• Outgoing Bandwidth:
  80 Mbps

• HDMI Output:
  1 channel, supporting the following resolutions:

  • 4K (3840 × 2160) @ 30Hz
  • 1920 × 1080p @ 60Hz
  • 1600 × 1200 @ 60Hz
  • 1280 × 1024 @ 60Hz
  • 1280 × 720 @ 60Hz
  • 1024 × 768 @ 60Hz

• VGA Output:
  1 channel, supporting the following resolutions:

  • 1920 × 1080p @ 60Hz
  • 1280 × 1024 @ 60Hz
  • 1280 × 720 @ 60Hz
  • 1024 × 768 @ 60Hz

• Video Output Mode:
  HDMI/VGA simultaneous output

• Audio Output:
  1 channel, RCA (Linear, 1 KΩ)

• Two-Way Audio:
  1 channel, RCA (2.0 Vp-p, 1 KΩ)

---

Decoding

• Decoding Format:
  H.265+, H.265, H.264+, H.264

• Recording Resolution:

  • 8 MP
  • 6 MP
  • 5 MP
  • 4 MP
  • 3 MP
  • 1080p
  • UXGA
  • 720p
  • VGA
  • 4CIF
  • DCIF
  • 2CIF
  • CIF
  • QCIF

• Decoding Capability:
  4 channels @ 1080p

• Synchronous Playback:
  16 channels

---

Network

• Remote Connection:
  32 connections

• Network Protocols:
  TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface:
  1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

---

PoE

• PoE Interface:
  16 channels

• Power:
  ≤ 150 W

• Standard:
  IEEE 802.3 af/at

---

Auxiliary Interface

• SATA Interface:
  2 SATA interfaces

• Capacity:
  Up to 8 TB capacity per disk

• USB Interface:
  2 × USB 2.0 ports

---

General Specifications

• Power Supply:
  100 to 240 VAC, 50 to 60 Hz

• Power Consumption:
  ≤ 15 W (without HDD and PoE off)

• Working Temperature:
  -10°C to 55°C (14°F to 131°F)

• Working Humidity:
  10% to 90%

• Chassis:
  1U chassis

• Dimensions (W × D × H):
  385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

• Weight:
  ≤ 2.6 kg (without HDD, 5.7 lb)
