• Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Wireless N speeds of up to 300 Mbps
• Integrated antennas provide stable wireless connections
• Requires no configuration - just insert a SIM card and turn it on to enjoy high speed internet access
• LAN/WAN port provides options and flexibility, allowing you to choose your connection type

Hardware Features

• Ports:
  • 3× 10/100 Mbps LAN ports
  • 1× 10/100 Mbps LAN/WAN Port
  • 1× Nano SIM Card Slot
• Button: WPS/RESET Button, WiFi ON/OFF Button
• External Power Supply (EU): 9V/0.85A
• Dimensions (W x D x H): 6.85 × 4.9 × 1.32 in. (174 × 124.5 × 33.5 mm)
• Antenna Type: 2× Detachable External 4G LTE Antennas

Wireless Features

• Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps at 2.4 GHz
• Reception Sensitivity:
  • 11g 54M: -74 dBm
  • 11n HT20: -71 dBm
  • 11n HT40: -67 dBm
• Transmit Power: <20 dBm (2.4 GHz)
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • Wireless Schedule
  • WMM
  • Wireless Statistics
• WAN Failover: Yes
• Wireless Security:
  • 64/128-bit WEP
  • WPA/WPA2
  • WPA-PSK/WPA2-PSK encryptions
• Network Type:
  • 4G: FDD-LTE Cat4 (800/900/1800/2100/2600 MHz), TDD-LTE (2300/2500/2600 MHz)
  • 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz)

Software Features

• Quality of Service: WMM, QoS
• Operating Modes: 3G/4G Router, Wireless Router
• Management: Access Control, Local Management, Remote Management
• WAN Connection Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: TP-Link DDNS, DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Access Control: Parental Controls, Local Management Control, Host List, Access Control
• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4 GHz Guest Network
• VPN Server: PPTP VPN, OpenVPN

Others

• Certification: CE, RoHS
• Package Contents:

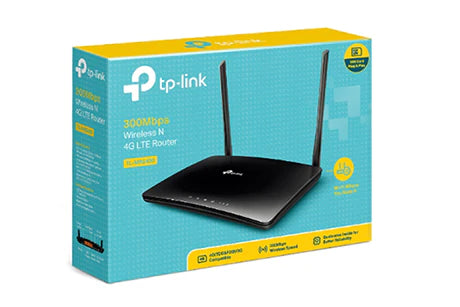

  • 300Mbps Wireless N 4G LTE Router TL-MR6400
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
• System Requirements:
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 8.1
  • MAC OS, NetWare, UNIX, or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers
  • Nano SIM Card
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
