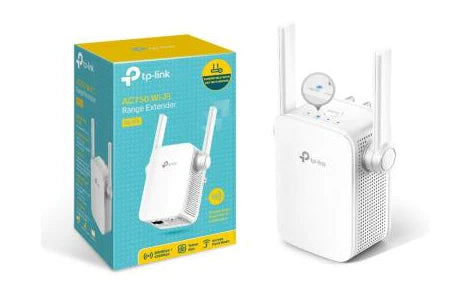

AC750 Wi-Fi Range Extender
- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at a combined speed of up to 750Mbps
- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for a more stable wireless experience
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
- Whole-Home Coverage with TP-Link OneMesh™ – Works alongside TP-Link TP-Link OneMesh™ products to create a flexible Mesh network.
Wireless Range Extender/Access Point Specifications
Working Modes
- Range Extender/Access Point
Hardware Features
-
Plug Type: AU
-
Ports: 1 x 10/100Mbps Ethernet Port (RJ45)
-
Button: WPS Button, Reset Button
-
Input Power: 100-240V~50/60Hz
-
Power Consumption: 7.3W (max power consumption)
-
Dimensions (W x D x H): 3.1 x 3.0 x 3.0 in. (80 x 78 x 77 mm)
-
Antenna: 2 External Antennas
Wireless Features
-
Frequency: 2.4GHz and 5GHz
-
Signal Rate:
- 300Mbps at 2.4GHz
- 433Mbps at 5GHz
-
Reception Sensitivity:
-
5GHz:
- 11a 6Mbps: -94dBm
- 11a 54Mbps: -77dBm
- 11ac HT20: -69dBm
- 11ac HT40: -66dBm
- 11ac HT80: -63dBm
-
2.4GHz:
- 11g 54Mbps: -79dBm
- 11n HT20: -77dBm
- 11n HT40: -74dBm
-
Wireless Functions:
- Enable/Disable Wireless Radio
- DFS (the latest firmware and hardware version is required)
- Access Control
- LED Control
- Power Schedule
- Wi-Fi Coverage
-
Wireless Security:
- 64/128-bit WEP
- WPA-PSK / WPA2-PSK
-
Transmission Power:
- 2.4G <19.5dBm
- 5G <19.5dBm
Others
-
Certification: CE, FCC, RoHS
-
Package Contents:
- AC750 Wi-Fi Range Extender RE205
- Quick Installation Guide
-
Box Dimensions (W x D x H): 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95 mm)
-
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista, Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
Environment
-
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% non-condensing
-
Storage Humidity: 5% ~ 90% non-condensing
