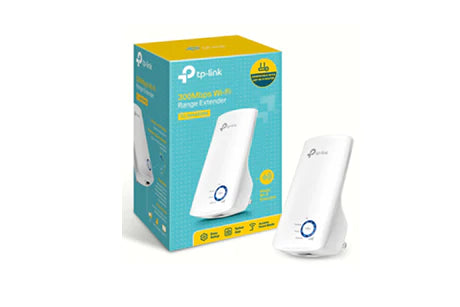

300Mbps Universal WiFi Range Extender
- Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Easily expand wireless coverage at a push of Range Extender button
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
- Tether App allows easy access and management using any mobile device
- LED Control function includes a Night Mode for peaceful sleep
Wireless Range Extender/Access Point Specifications
Wireless
-
Working Modes: Range Extender/Access Point
Hardware Features
-
Plug Type: AU
-
Interface: 1 x 10/100M Ethernet Port (RJ45)
-
Ports: 1 x 10/100Mbps Ethernet Port (RJ45)
-
Button: RE (Range Extender) Button, Reset Button
-
Input Power: 100-240V~50/60Hz
-
Power Consumption: About 3W
-
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
-
Dimensions (W x D x H): 4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2 mm)
-
Antenna: 2 internal
Wireless Features
-
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
-
Frequency: 2.4 ~ 2.4835GHz
-
Signal Rate:
- 11n: Up to 300Mbps (dynamic)
- 11g: Up to 54Mbps (dynamic)
- 11b: Up to 11Mbps (dynamic)
-
Reception Sensitivity:
- 270M: -68dBm@10% PER
- 130M: -68dBm@10% PER
- 108M: -68dBm@10% PER
- 54M: -68dBm@10% PER
- 11M: -85dBm@8% PER
- 6M: -88dBm@10% PER
- 1M: -90dBm@8% PER
-
Transmit Power: < 20 dBm (EIRP)
-
Wireless Modes: Range Extender/Access Point
-
Wireless Functions:
- WMM (Wi-Fi Multimedia)
- Wireless MAC Address Filtering
- Wireless Statistic
- Domain Login Function
-
Wireless Security:
- 64/128/152-bit WEP
- WPA-PSK / WPA2-PSK
-
Transmission Power: < 20 dBm (EIRP)
Others
-
Certification: CE, RoHS
-
Package Contents:
- 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
- Quick Installation Guide
-
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista, or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX®, or Linux
-
Environment:
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
-
Warranty: Limited 3-Year Warranty
