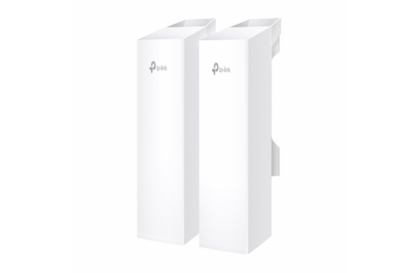

TP-Link EAP211-Bridge KIT Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.^*1
• Ideal for long-range wireless transmission up to 1 km.^*2
• Auto-pairing and agile LEDs for efficient deployment.
• 3× Gigabit Ethernet ports for more high-speed IP camera connections.^*6
• Supports Omada SDN for remote and centralised management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.^*3
• Supports Passive PoE for flexible deployment (adapter included).

HARDWARE FEATURES

• Interface: 3× Gigabit Ethernet Ports*6
• Button: Reset
• Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Power Consumption: 11.5W
• Dimensions (W × D × H): 3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm)
• Antenna Type: Internal 2×2 Dual-polarized directional MIMO antennas
  • 5 GHz: 7.0 dBi
  • Horizontal: 70°
  • Vertical: 70°
• Weatherproof Enclosure: IP65
• Mounting: Pole Mounting (Accessories included)

WIRELESS FEATURES

• Coverage: 1000m *(3280ft)*⁵
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Frequency: 5 GHz
• Signal Rate: 5 GHz: Up to 867 Mbps
• Wireless Functions:
  • Mesh*⁴
  • MU-MIMO: 5G 2×2 MU-MIMO DL
  • Load Balance
  • Seamless Roaming (802.11r)
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDs: 8
  • Wireless Statistics
  • Wireless Schedule
  • Reboot Schedule
  • RADIUS Accounting
  • MAC Authentication
  • Static IP/Dynamic IP
• Wireless Security:
  • VLAN
  • Access Control
  • Rogue AP Detection
  • Captive Portal Authentication*⁴
  • Maximum number of MAC Filter: 4,000
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• Transmission Power:
  • CE:
    • <23dBm (5 GHz, band 1/2, EIRP)
    • <28.5dBm (5 GHz, band 3, EIRP)
  • FCC:
    • <22dBm (5 GHz, band 1/4)

MANAGEMENT

• Omada App: Yes
• Restore & Backup: Yes
• Firmware Update via Web: Yes
• NTP: Yes
• Centralized Management:
  • Omada Hardware Controller (OC300, OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
• Cloud Access: Yes (Requires OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.)
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents:
  • EAP211-Bridge KIT
  • Passive PoE Adapter
  • Power Cord
  • Installation Guide
  • Mounting Kit
• Environment:
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10%–90% (non-condensing)
  • Storage Humidity: 5%–90% (non-condensing)
