Description

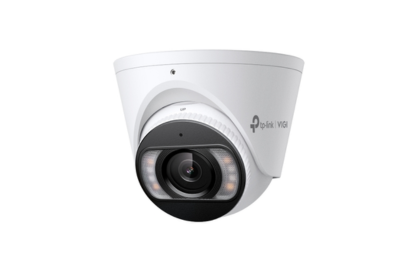

VIGI C455
VIGI 5MP Full-Colour Turret Network Camera
- 5MP Super-High Definition and 24h Full-Colour
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
CAMERA
Image Sensor
- 1/2.7” Progressive Scan CMOS
Shutter Speed
- 1/3 to 1/10000 s
Slow Shutter
- Yes
Minimum Illumination
- 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism
- IR Cut Filter
Day/Night Switch
- Unified/ Scheduled/ Auto
LENS
Type
- Fixed Focal Lens
Focal Length
- 2.8/4 mm
Aperture
- F1.6
FOV
- 2.8 mm:
- Horizontal FOV: 111.4°
- Vertical FOV: 58.8°
- Diagonal FOV: 134°
- 4 mm:
- Horizontal FOV: 88°
- Vertical FOV: 46°
- Diagonal FOV: 105.4°
Lens Mount
- M12*P 0.5
DORI Distance
- 2.8 mm:
- Detect: 64 m (210 ft)
- Observe: 27 m (89 ft)
- Recognize: 13 m (43 ft)
- Identify: 6 m (20 ft)
- 4 mm:
- Detect: 80 m (262 ft)
- Observe: 33 m (108 ft)
- Recognize: 16 m (52 ft)
- Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL)
Range
- Pan: 0° to 360°
- Tilt: 0° to 85°
- Rotation: 0° to 360°
ILLUMINATOR
IR LED
- Quantity: 4
- Range: 30m
- Wavelength: 850nm
White LED
- Quantity: 4
- Range: 30m
Illuminator On/Off Control
- Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
- 2880 X 1620
Main Stream
- Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note
- If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
- Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 704x576, 640x480, 352x288, 320x240
Note
- If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
- CBR, VBR
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
H.264 Type
- High Profile
H.264+
- Main Stream Supported
H.265 Type
- Main Profile
H.265+
- Main Stream Supported
Video Bit Rate
- Main Stream: 256 Kbps to 6 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
Image Enhancement
- BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
- 120 dB
Note
- When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR
- ≥ 52 dB
Image Parameters Switch
- Yes
Privacy Mask
- Up to 4 Masks
ROI
- 1 Region
OSD Setting
- Yes
AUDIO
Audio Communication
- Two-Way Audio
Audio Input
- Yes
Audio Output
- Yes
Audio Compression
- Yes
Audio Sampling Rate
- 8KHz
Environment Noise Filtering
- Yes
Audio Bit Rate
- 64 Kbps (G.711 alaw)
NETWORK
Protocol
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
- Yes
API
- Open Network Video Interface (Profile S)
Simultaneous Live View
- 3 Main Streams & 3 Sub-Streams
Client
- VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser
- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
Cloud
- Yes
Security
- Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
- Human & Vehicle Classification
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- Smart Frame
- People Detection
- Vehicle Detection
Basic Event
- Motion Detection
- Video Tampering Detection
- Exception (Illegal Login)
- Scene Change Detection
Alarm Linkage
- Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing
Linkage Method
- N/A
Output Notification
- Message Push
DEEP LEARNING FUNCTION
People & Vehicle Analytics
- Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
INTERFACES
Network Interface
- 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
- N/A
Reset Button
- Yes
Power
- DC Power Port
On-board Storage
- Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
- Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
- Yes
Audio
- N/A
GENERAL
Operating Temperature
- -30–60 °C
Storage Temperature
- -40–60 °C
Operating Humidity
- 95% or Less (Non-Condensing)
Storage Humidity
- 95% or Less (Non-Condensing)
Package Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Material
- Metal
Net Weight
- 0.48 Kg
Power Supply
- 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
- PoE: 802.3af/at, class 0, Max. 12 W
Protection
- IP67
Product Dimensions (L x W x H)
- 111 × 111 × 83.7 mm
Certifications
- CE, NTRA, VCCI, KC, BSMI, FCC, IC
