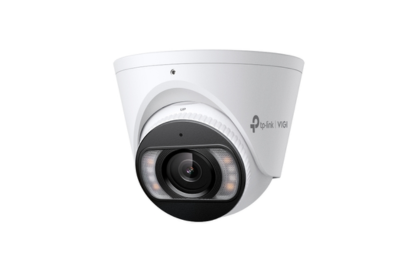

Tp-link VIGI C485 8MP Full-Colour Speaker / Mic / Light Turret Network Camera

• 4K (8MP) Ultra HD and 24h Full-Colour
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology
• 12V DC/PoE





CAMERA

Image Sensor

• 1/2.7” Progressive Scan CMOS

Shutter Speed

• 1/3 to 1/10000 s

Slow Shutter

• Yes

Minimum Illumination

• 0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

• IR Cut Filter

Day/Night Switch

• Unified / Scheduled / Auto

LENS

Type

• Fixed Focal Lens

Focal Length

• 2.8 mm / 4 mm

Aperture

• F1.6

Field of View (FOV)

2.8 mm:

• Horizontal: 111.4°
• Vertical: 58.8°
• Diagonal: 134°

4 mm:

• Horizontal: 91.5°
• Vertical: 46.1°
• Diagonal: 109.6°

Lens Mount

• M12 * P 0.5

DORI Distance

2.8 mm:

• Detect: 85 m (278 ft)
• Observe: 35 m (116 ft)
• Recognize: 17 m (56 ft)
• Identify: 8 m (28 ft)

4 mm:

• Detect: 107 m (350 ft)
• Observe: 44 m (146 ft)
• Recognize: 21 m (70 ft)
• Identify: 11 m (35 ft)

ANGLE ADJUSTMENT (MANUAL)

Range

• Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotation: 0° to 360°

ILLUMINATOR

IR LED

• Quantity: 4
• Range: 30 m
• Wavelength: 850 nm

White LED

• Quantity: 4
• Range: 30 m

Illuminator On/Off Control

• Auto / Scheduled / Always on / Always off

VIDEO

Max. Resolution

• 3840 x 2160

Main Stream

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:
  • 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note:
  • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
  • If 120dB is turned on, the frame rate can only support up to 20fps.

Sub-Stream

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:
  • 704x576, 640x480, 352x288, 320x240
• Note:
  • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
  • If 120dB is turned on, the frame rate can only support up to 20fps.

Bit Rate Control

• CBR, VBR

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

H.264 Type

• High Profile

H.264+

• Main Stream Supported

H.265 Type

• Main Profile*

H.265+

• Main Stream Supported*

Video Bit Rate

• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software

Image Enhancement

• BLC / 3D DNR / HLC / SmartIR

Wide Dynamic Range

• 120 dB

SNR

• ≥ 52 dB

Image Parameters Switch

• Yes

Privacy Mask

• Up to 4 Masks

ROI

• 1 Region

OSD Setting

• Yes

AUDIO

Audio Communication

• Two-Way Audio

Audio Input

• Yes

Audio Output

• Yes

Audio Compression

• Yes

Audio Sampling Rate

• 8KHz

Environment Noise Filtering

• Yes

Audio Bit Rate

• 64 Kbps (G.711 alaw)

NETWORK

Protocol

• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF

• Yes

API

• Open Network Video Interface (Profile S)

Simultaneous Live View

• 3 Main Streams & 3 Sub-Streams

Client

• VIGI App, VIGI Security Manager, Web UI, VIGI VMS

Web Browser

• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above

Cloud

• Yes

Security

• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event

• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• Smart Frame
• People Detection
• Vehicle Detection

Basic Event

• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
• Scene Change Detection

Alarm Linkage

• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing

Linkage Method

• N/A

Output Notification

• Message Push

INTERFACES

Network Interface

• 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm

• N/A

Reset Button

• Yes

Power

• DC Power Port

On-board Storage

• Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB**

Built-in Microphone

• Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

• Yes

Audio

• N/A

GENERAL

Operating Temperature

• -30°C to 60°C

Storage Temperature

• -40°C to 60°C

Operating Humidity

• 95% or Less (Non-Condensing)

Storage Humidity

• 95% or Less (Non-Condensing)

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Material

• Metal

Net Weight

• 0.48 Kg

Power Supply

• 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12.5 W

Protection

• IP67

Product Dimensions (L x W x H)

• 111 × 111 × 83.7 mm

Certifications

• CE, NTRA, VCCI, KC, BSMI, FCC, IC
